Temperature control system PRESTO W56

laboratorydigitalhighly dynamic

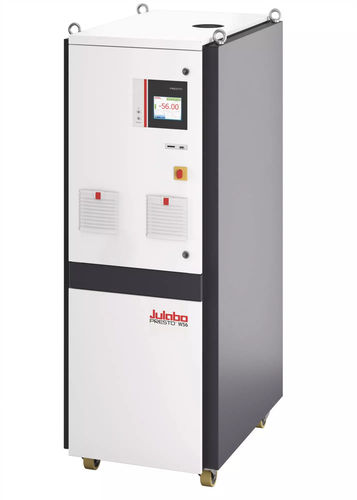

The water-cooled PRESTO W56 is able to quickly and efficiently control the temperature in applications requiring a great deal of power. Even at low temperatures, this model has large power reserves for demanding external applications. The magnetically coupled pump allows the user to optimally adjust pump capacity to suit the application, even over large distances and height differences, as well as for pressure-sensitive applications. Use of the latest thermodynamic technologies means that the cooling capacity is automatically adjusted to the current power requirements. In combination with additional optimizations, this makes the PRESTO W56 very economical and energy-efficient. Product Features External Pt100 sensor connection Analog connections, RS485, Profibus DP (accessory) Second external Pt100 sensor connection (accessory) Heating capacity up to 27 kW Temperature stability ±0.05 °C ... ±0.1 °C Alarm output Built-in 5.7’’ industrial color touchscreen Cooling capacity up to 25 kW Pump pressure up to 3 bar, max. flow rate 80 l/min PRESTO W56 Benefits 100% Checked. 100% testing. 100% quality. Each JULABO Circulator undergoes thorough quality testing before leaving the factory. Green technology. Development consistently applied environmentally friendly materials and technologies. Touch display. Perfect operation. With the touch display, the user always has an overview of all values and functions. The intuitive and multilingual menu structure enables perfect control. Convenience for several users Administrator level for customizing instrument settings, user levels with limited permissions for fast and safe defined access, password protection, all levels adjustable
