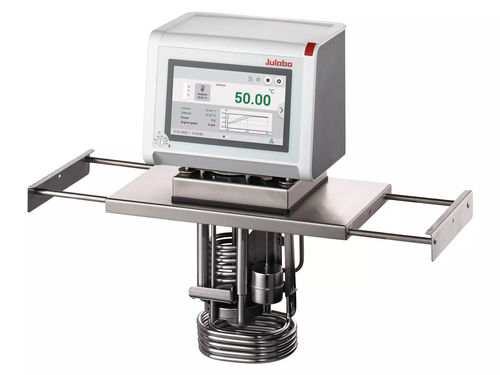

Laboratory thermostat MAGIO MX-Z

benchtopimmersionanalog

MAGIO bridge mounted circulators combine high temperature control performance with maximum flexibility. The adjustable bridge means that the circulators can be used with bath tanks up to a filling volume of 100 liters. High resolution TFT touch display The modern TFT touch display gives you all the important information at a glance. Three large, predefined main screens clearly display data and graphics with various application priorities. Menu navigation is self-explanatory, arranged by relevance to daily operations and easy to operate with the touch of a finger. The in-built help function provides detailed support in case of additional questions. Product Features Immersion depth of 200 mm (MX-Z) and 150 mm (MS-Z) Strong heating capacity of 3 kW (MX-Z) and 2 kW (MS-Z) Extendable stainless steel bridge from 33 to 68 cm Ideal for demanding external applications Simple control of complex applications Continuously adjustable, extremely powerful pressure / suction pump Flow rate 16 ... 31 l / min, pressure 0.24 ... 0.92 bar, suction 0.03 ... 0.4 bar Parts being in contact with the medium made of stainless steel Integrated programmer Integrated external Pt100 connection USB connection RS232 interface for online communication Ethernet analog interfaces (accessory) Connections for solenoid valve Large, high-resolution TFT touch display with multilingual user interface Class III (FL) according to DIN 12876-1 Integrated pump connection M16×1 Modbus TCP/IP MAGIO MX-Z Benefits Intelligent temperature control. Intelligent cascade control - automatic and self-optimizing adaptation of the PID control parameters with external stability of +/- 0.05 °C.
