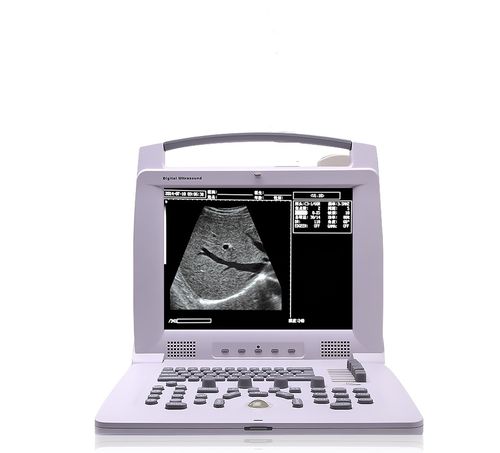

Portable veterinary ultrasound system PL-3018VP

multipurposefor small animalsfor large animals

This equipment is convex linear ultrasound scanning diagnostic system with high resolution. It applies micro-computer control and digital scan converter (DSC), digital beam forming(DBF),real time dynamic aperture (RDA), real time dynamic receiving apodization, real time dynamic receiving focusing(DRF),digital frequency scan (DFS), 8 segments digital TGC, guide cannula puncture, frame correlation technologies to endue its image with clarity, stabilityand high resolution. Features: For real-time picture uploading to PC 2 USB ports; 2- probe connectors; Monitor: imported 12 " LCD; Probe elements : 96; Power Supply: AV220V±22V, 50MHz±1MHz; Specifications: Probe frequency: 2.5Mhz-8.5Mhz Displayed Depth(mm): 240(max.), 16 levels adjustable Detect depth(mm): ≥60 Resolution(mm): Lateral, ≤2（depth≤80）, ≤3（80＜depth≤130）; Axial, ≤2（depth≤80）, ≤3（80＜depth≤130） Blind zone(mm): ≤7 Geometric position precision: Horizontal≤15; Vertical≤10 Monitor size: 12 inch Image storage: 32 Image gray scale: 256 Scan depth: 40mm-240mm Cine loop: 809 frame (max.) Posture mark: ≥40 Dynamic range: 100dB-130Db Image flip: up/down, right/left, black/white Scan angle: adjustable Focus position: adjustable Focal space: 5 level Measurement: distance, circumference, area, volume, heart rate, gestation age, EDD Notation: date, time, name, sex, age, full screen words edit and etc. Output report: 2 type Output: PALD, NTSC N.W: 6KG
