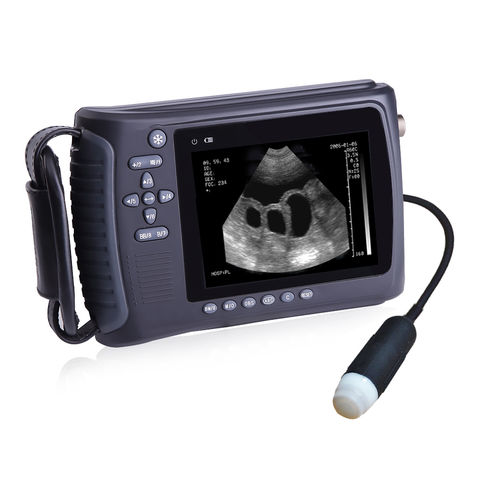

Hand-held veterinary ultrasound system PL-2018V

multipurposefor large animalsB/W

This equipment is high resolution linear/convex ultrasound scanning diagnostic equipment. It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), digital frequency scan (DFS), frame correlation technologies to endue its image with clarity, stability and high resolution. Specifications: Displayed Depth(mm): 192 Maximal detect depth(mm): ≥140 Resolution(mm): Lateral, ≤4（depth≤80）, ≤5（80＜depth≤130）; Axial, ≤2（depth≤80） Blind zone(mm): ≤8 Geometric position precision: Horizontal≤20; Vertical≤10 Monitor size: 5.0” TFT-LCD Display mode: B, B+B, B+M, M, 4B Image gray scale: 256 Scan depth: 120mm-190mm Image process: histogram, color encode, gama, image smooth Measurement: distance, circumference, area, volume, heart rate, gestation age Notation: date, time, name, sex, age, full screen words edit and etc. Output report: measurement Output: USB2.0, VIDEO( PALD, NTSC) Machine size: 230mm(L) x 120mm(W) x 38mm(H) N.W: 800G Battery continuous work: ≥3 hours
