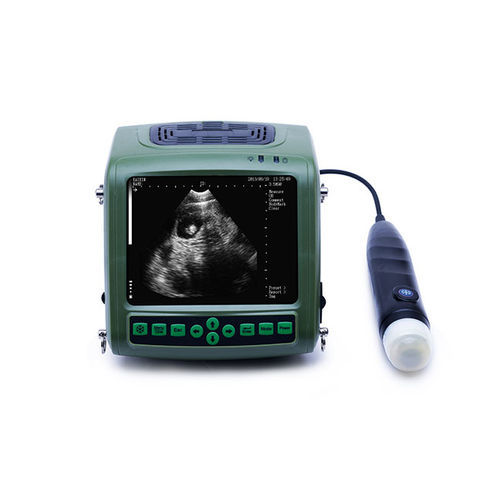

Hand-held veterinary ultrasound system MSU1 PLUS

multipurposeB/W

Full Digital Mechanical Sector Scanning Ultrasonic Diagnostic Scanner • Wrist design, multiple patents in one, smart and light, easy to carry, convenient for examining. • Wrist, hang around neck, desktop, outdoor sunshade, total four kind of application, which brings the new application experience to users. • 5.7" high resolution color LCD, high brightness, high contrast, wide visual, image clear and exquisite. • Display backfat ruler, easy to intuitive see backfat thickness. • Export EXCEL form, user-friendly management of pregnancy records. • OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama. • Menu operation，Language: Chinese/English. • 5 kinds Magnification, maximum display depth is 200mm. • Display mode:B,2B,4B,B/M,M. • 256 frames permanent storage. • Eight pseudo colors (incl.B/W). • High speed USB port support high-capacity U disk. • Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to video recorder and video glasses. • Optional mouse to operate easier. • Freeze or unfreeze image by shutter release. • Water-proof, dust-proof, unique window radiator, avoid farmhouse cross infection. • Adopted AC and DC to supply power, equipped with 1pc of high-capacity lithium batteries which can make machine work more than 200 minutes.
