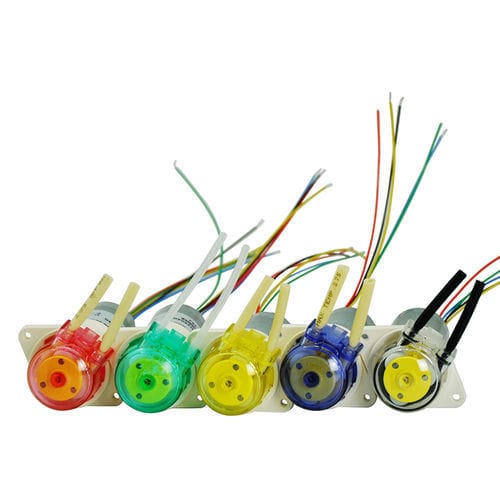

Laboratory peristaltic pump KFS

Suitable for viscous liquid and non-viscous liquid Smallest peristaltic pump, weight only for 90g High reliability, low noise Lifetime for the motor: 3000H Tubing for selection: Silicone tubing, imported PharMed, imported Masterflex Viton tubing Working environment: temperature 0-40℃、humidity＜80% Applications KFS Peristaltic Pump 1.Unmanned aircraft sprays 2.Cleaning robot 3.Sweeping robot Motor selection Motor type: DC motor Voltage: 6V/12V/24V Tube Selection imported PharMed BPT:B imported MasterFlex Viton:V Note: Tubing length: 135mm(exposed 30mm) BPT tube (B) Viton tube (V) 175mm(exposed 50mm) Silicon tube (5) Ideal working condition: Ambient temperature 0-40°C Relative humidity<80% Transmission method is gear drive, one slow down gear rate:1:14, two slow down gear rate:1:196. One slowdown gear reduction speed of output is fast, tends to achieve high flow rate; Two slowdown gear reduction speed of output is slow, tend to achieve mini flow rate Main material Cover is made of highlight PC plastic, pump body, gear use of imported synthetic plastics to ensure the reliable and low-noise operation of pump.
