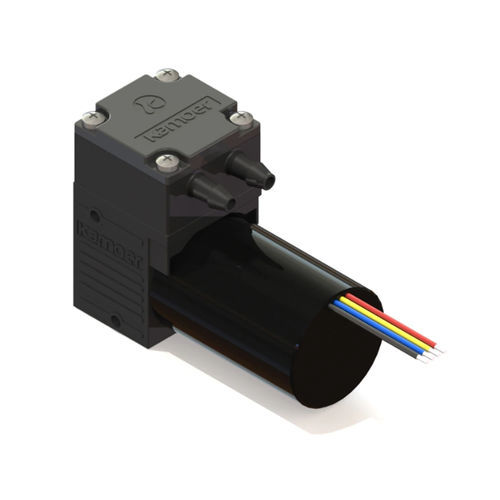

Laboratory vacuum pump JET500 series

reciprocatingdiaphragm

Stable and reliHigh pressure miniature diaphragm fluid pump Powered by a miniature brushless DC motor -Stable and controllable -Industrial quality -Low vibration -Low noise -Shock absorption design -Small volume PPS pump head Rubber shock absorption technology Greatly reduce noise, Applicable life extension Small size and lower consumption Designed according to the principle of positive displacement pump Corrosion-resistant material (Special liquids need to be tested for compatibility) The miniature DC motor provides power and drives the rubber diaphragm cavity through an eccentric structure to form a reciprocating movement of the volume of the noise isolation cavity, which cooperates with the closing and opening of the check valve to achieve the suction and discharge of liquid. Fluid medium: general liquid (special liquids need to be tested for compatibility) Liquid pressure: maximum pressure up to 3.5Bar Core material: PPS pump head & EPDM diaphragm Core drive: high-quality DC Motor Installation method: two installation methods, supporting vibration damping feet. Control method: PWM and analog voltage speed input voltage: 12V / 24V input. pt,,. Working environment: temperature range: 5°C-50°C; Relative humidity:<90% JET500 is a miniature diaphragm liquid pump, designed according to the principle of positive displacement pump. It is powered by a high-end miniature DC brushless motor, and drives the rubber diaphragm cavity through an eccentric structure to form a reciprocating motion of the diaphragm cavity with a constantly changing volume. It cooperates with the closing and opening of a check valve to achieve the suction and discharge of liquid.
