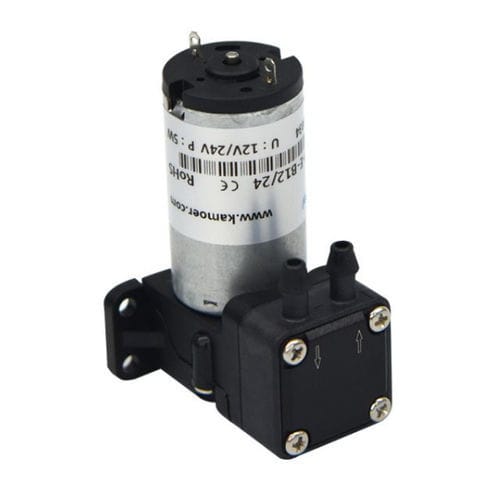

Laboratory vacuum pump KLP180

medicaldiaphragm

Performance Feature 1. Self-priming, Support Idling 2. Low Power Consumption 3. Available Corrosive Liquid 4. Long Service Life 5. Compact Structure 6. Low Noise 7. Small Size Basic Parameters Voltage: 12V/24V Motor：Brush/Brushless Motor Power: ≤6W Flow: ≥160ml/min Liquid pressure: 0.3Mpa Negative Pressure: 0.02Bar Diaphragm Material: EPDM or FPM (Before your ordering, please contact customer service to confirm the diaphragm material, otherwise, we'll choose EPDM automatically.) Noise: ≤ 58dB ​Life time: Brush-500H; Brushless-5000H Working environment: Temperature 0~40℃ Relative humidity: less than 80% Multiple Applications Labortory， Wastewater Treatment Inkjet Printing， Liquid Dispensing Medical Equipment， Industrial Equipment Packing List 1 × pump. 1 × pump. E-DC24--Power supply: 1 × pump; 1 × power supply. E-DC12--Power supply: 1 × pump; 1 × power supply. ​ Structure Description 1. Screw（metal） ， 2. Upper cover（Powder metallurgy），3. Gasket（EPDM/PTFE） 4. Upper valve plate（PPS），5. Valve（EPDM/V），6. Lower valve plate（PPS） 7. Diaphragm（EPDM/V），8. Pump body(PA6) ，9. End cover screw（metal） ​10. Oil bearing（Copper matrix）11. Back cover(PA6) ，12. Eccentric wheel（aluminum） 13. Bearing positioning ring（NSK/NMB） 14. Pump body screw（metal） 15. Motor（Ferrite）
