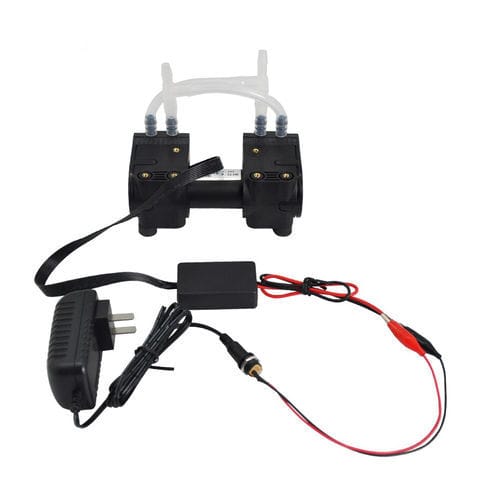

Laboratory vacuum pump KVP15

diaphragmdry

High negative pressure, High Flow Long lifetime, Brush DC motor KVP15 diaphragm vacuum pump is based on a simple principle-an elastic diaphragm, fixed on its edge, moves up and down its central point by means of an eccentric. In this way the gas is transferred using atomatic valves. High negative pressure(≤0.092Mpa) Brush DC Motor, longlife time Extreme chemical stability Dry running, durable and maintenance free 12V and 24V for selection 1.Motor selection KL: 24V Brushless DC motor KM: 12V Brushless DC motor 2.The type of tube connection Currently we offer 2 types of tube connection 1) "empty" means parallel connection 2)"S" means series connection 3)"1"means single head 3.Diaphragm material: Currently we provide diaphragm, Valve material: EPDM: alcohols, acids, bases, oxidizers, chemicals such as ketones and fat have better resistance and poor oil resistance. Working condition Environment temperature 0-40 C Relative humidity <80%
