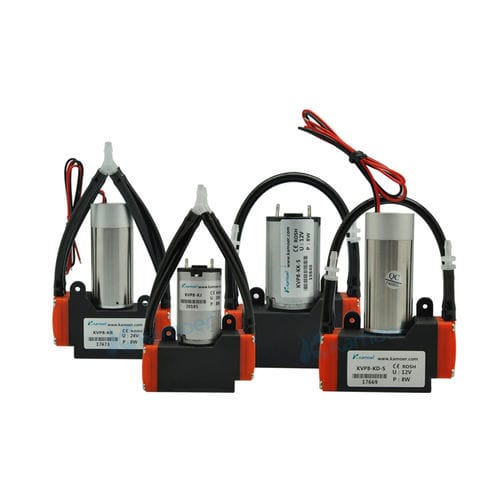

Medical vacuum pump KVP8diaphragm
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- diaphragm
- Flow
320 l/h, 400 l/h, 480 l/h
(84.54 us gal/h, 105.67 us gal/h, 126.8 us gal/h)- Pressure
0.1 MPa, 0.12 MPa
- Weight
Min.: 0.2 kg
(0.4 lb)Max.: 0.3 kg
(0.7 lb)
Description
1.Negative pressure (in series ) : ＜-0.082Mpa
2.Negative pressure( In parallel) :＜-0.06Mpa
3.Motor:Brush/Brushless
4.Flow rate: >320L/H; ＞480L/H
5.Air positive pressure ： ＞0.1Mpa
6.Motor Life:2000H/6000H
1.Gas analysis
2.Physiotherapy
3.Mounter
4.Beauty industry
Weight
0.23-0.28KGS
Environment temperature range
0-40°C (0 to 104°F) (Note: Freezing must be prevented)
Ambient humidity range
<80% RH
Certifications & Approvals
IS09001, CE, RoHS
