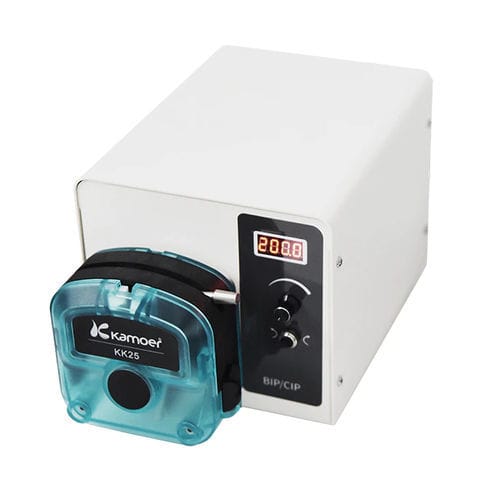

Laboratory peristaltic pump BIP series

★ Automatic circulation ★ Semi-automatic cycle ★ Manual start/stop ★ Positive/Reverse ★ Speed control ★ Parameter memory Voltage: 220V Power: 150W max Current: 2A Pump tube: Silicone/BPT Pump head: KK15; KK25 Peristaltic Pump Head Working temperature: -20~60℃ Body size: 173*229*167(L*W*H,including pump head) Range of rotation: 0.1rpm-600rpm Speed adjustment resolution: 0.1rpm Control method: Encoder, toggle switch, external analog signal control, RS485 communication control, foot switch control External analog signal control: 4-20mA, 0-5V Display mode: LED 4-digit digital tube, Speed display, duration display Working mode: Fully automatic cycle, semi-automatic cycle, manual Support function: Start and stop, forward and reverse, speed adjustment, etc. # Canned liquid # Laboratory # Food industry # Medical equipment ▲ The external uses RS485 communication protocol, the transmission rate is faster than RS232, the communication distance is father. ▲ Left is Power socket; Right is Combination control port No 1: (Leave empty)reserved No 2: 485 B No 3: 485 A No 4: Foot switch + No 5: Foot switch - No 6: Analog signal 5V- No 7: Analog signal 5V+ No 8: Analog signal mA- No 9: Analog signal mA+ ▲ External control port Contains the following controls: 1. 485 communication (Pin 2, 3) 2. External start and stop control (Pin 4, 5) 3. Analog signal control 0~5V (Pin 6, 7) 4. Analog signal control 4~20mA (Pin 8, 9) When the user needs to use several of them at the same time, please purchase the kamoer control wire. ▲ Size: 173*229*167 mm(Does not include pump head) Note: There is an error in manual measurement, please refer to the design drawing size.
