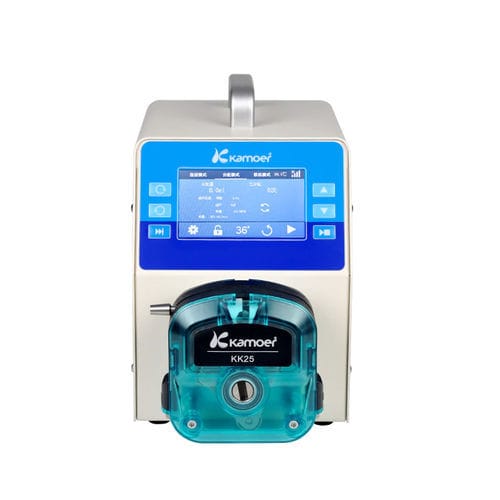

Laboratory peristaltic pump AIP series

3 Kinds of Working Mode ★ Continuous mode ★ Distribution mode ★ Online mode Motor: Stepper motor Voltage: AC 100~240V Power: 150W Max Flow Range: 6000ml/min Power off memory function: Support Delivery accuracy: 0.1RPM Maximum speed: 600RPM Working temperature: 0~50 ℃ Relative humidity: 10%-90% Net weight: 7.7KG Gross weight: 9KG Size: 280*152*235 mm (L*W*H) External analog signal control: 4-20mA, 0-5V Display mode: 4.3 inch industrial touch screen, speed display, duration display Control method: Thin film button, touch screen, External analog signal control, Dosing gun, External R485/CAN communication control. Support function: Start and stop, forward and reverse, speed control, parameter memory,etc ▲ Fast transmission rate The external RS485 communication protocol is adopted, the transmission rate is faster than RS232, and the communication distance is longer. ▲ Power port: Used for external AC power supply, the range of application is 85~264V; ▲ WiFi port: WiFi antenna equipped with standard for connection to enhance the connection signal strength of WiFi; Multiple AIPUMP600 interconnected, need to use WiFi. ▲ Communication port: used to communicate with other devices through 485; Used for interconnection with foot switch; Used for interconnection with other devices through CAN communication. When you need to use two of the functions at the same time, please access the Kamoer control port - two or one four wire (Note: this wire is not standard, need to buy separately) ▲ Expansion port: used to connect with expansion equipment, such as temperature detection, liquid level detection; Used for interconnection with analog signal generating equipment
