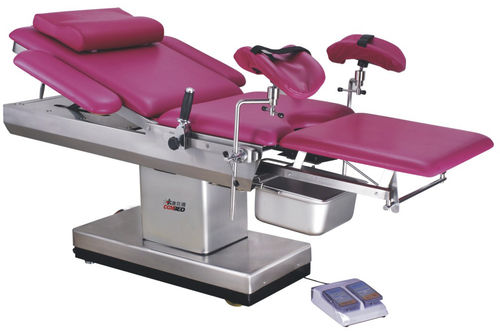

Hospital bed DH-C102A

medicaldeliveryelectric

Trendelenburg&reverse trendelnburg Reverse trend ≥15°,trend≥15° Back section turning 0~75° Assist platform dimension Length 550mm,width 550mm Arm rest swing out ≥90° Filth basin dimension 468*338*125mm(can be equipped with soft pipe) Power AC 220V 50HZ Operation Description The hospital multifunctional delivery room bed is designed and manufactured to meet the need of the medical enterprise. It is used for childbirth, gynecology surgical operation, examining and many other functions, including caesarean operation.The ascent and decent of the whole set is controlled by the electric push rod, with the foot switch to make the platform top rake and back slope and the back board rise.The table is moved by the foot pedal control. Conditions for normal operation 1. Ambient temperature: 5 0C ~ 400C 2. Relative humidity: ≤ 80% 3. Atmosphere pressure: 70kPa ~ 106kPa 4. Power voltage: AC220V±22V 5. Power frequency: 50Hz±1Hz 6.Input power:130 VA Conditions for storage and transportation 1. Ambient temperature: -40 0C ~ 550C 2. Relative humidity: ≤ 95% 3. Atmosphere pressure: 50kPa ~ 106kPa 4.The packed obstetric table should be stored in a room which has a relative humidity less than 80%, no corrosive gas and well-ventilated condition.
