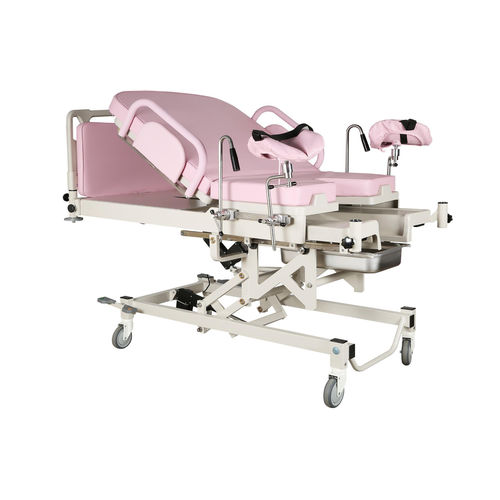

Delivery bed DH-C101A02-01

electricheight-adjustableon casters

Bed top width 870mm Back section up 70° Trendelenburg max ≥6° Reverse Trendelenburg max 5° Length of chair position 1050mm Assist bed slide 550mm Weight 200kg Product Description The bed includes side rail, hand grip, assist platform, filth basin, central brake castor, brake pedal etc.Side rail pull up and put down,Pull out the side rail, and at the mean time turn it left or right by 180°, release when it reaches the position, the side rail will automatically locked. The same way to turn it up by 180°, it will reaches the normal working position.Back section angle adjustment,Push the button “Back section up” or “Back section down” on hand control, the back section then turn up or turn down.
