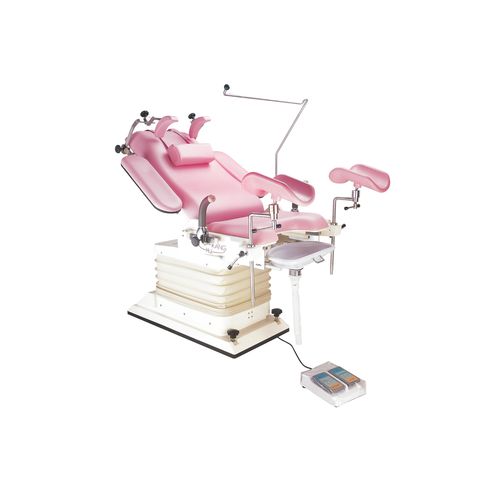

Gynecological examination chair DH-S104B

electrictilting2-section

Back section turning :Down≥8° ,up≥60° Seat chair tilting turning:Down≥8° ,up≥16° Arm rest swing out :0°~90° Handle slide distance :140mm Filth basin slide distance :150mm Power :AC 220V 50HZ Back section adjust,pull out the gas spring switch behind the back section, lift up the back section at the same time to make it turn up, or push down the back section. Release the switch at any position when it turn up or down, the back section will lock . Seat section adjust,Press the “seat section up” or “seat section down” on the “foot switch” can realize seat section up and down. Leg section adjust,electric gynecology chair leg section adjusted by hand, hold the holding place in both sides of leg section and pull it out, can take leg section off from the chair, contrarily, insert the “leg section” into holes under “seat section” when using it. Arm board swing,arm board adjusted by hand, when pulling out the “pole” under “arm board”, swing out the arm board at the same time. Loosing the “pole” is to lock it at the suitable place.“Arm board” in two sides of gynecology chair is “knock-down” structure. Loosing the “screw” underside, can take the “arm board” from the “accessory rail”. Or can choose either “arm board” according to gynecology chair position.
