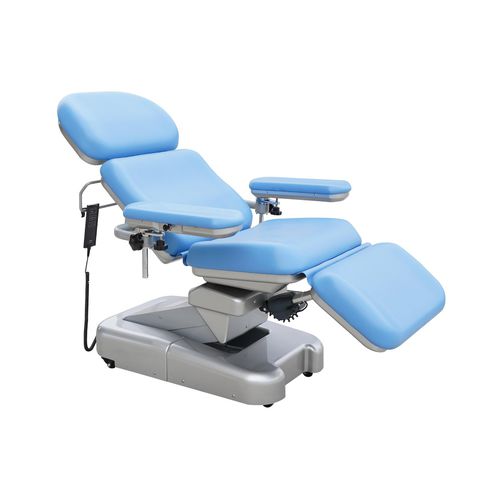

Electric blood donor chair DH-XD101-01

4-sectionheight-adjustable

Dimension of chair:1700mm±15mm×560mm±10mm Height of chair:lowest 540mm±15mm, highest 830mm±15mm (exclude the cushion) Head section turning angle：±15° Back section turning angle：0～80° Seat section tilt angle:：0～12° Leg section turning angle：0～90° Arm board swing out：0～45° Arm board slide：100mm Arm board height adjustment：100mm Loading:160 kg Net weight:130 kg Operation methods The device has “adjustment spanner” which is to lock or release base. Adjust the support feet clockwise to lock base and anticlockwise to release it.Operating the hand control.The operator shall press the icon on the “hand control” to accomplish relevant operation according to the requirement. The armrest is linked with back section, when the back section raise, the armrest raise, contrary, they down at same time. Arm rest always remains horizontal position.The armrest is designed as knock-down structure. The user can use any side of the armrest according to actual locating space.Armrest disassembly,Pull up the armrest by 90 degree from normal position. In this position, hold the round pipe at the rear end of the armrest with one hand and hold the front end of the armrest with another hand, then pull out.
