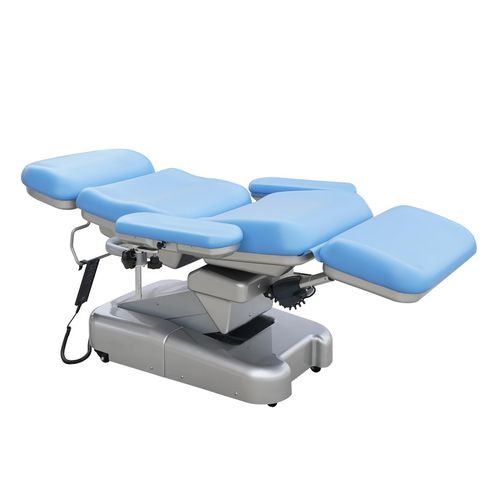

Electric blood donor chair DH-XD101-02

4-sectionheight-adjustable

Dimension of chair 1700mm±15mm×560mm±10mm Height of chair lowest 540mm±15mm, highest 830mm±15mm (exclude the cushion) Head section turning angle ±15° Back section turning angle 0～80° Seat section tilt angle: 0～12° Leg section turning angle 0～90° Arm board swing out 0～45° Arm board slide 100mm Arm board height adjustment 100mm Loading 160 kg Net weight 130 kg List of accessory Arm rest:1 pair Hand control:1 piece Wire:1 piece Spanner:1 piece Introduction of product Back section adjustment and leg section combined movement.Press the “back section up” or “back section down” on the hand control to implement function as raise and down.The leg section and back section are moving together, that is, when back section raise up, the leg section goes down, while when the back section goes down, the leg section raise up. When the back section is horizontal, the leg section is also horizontal.Seat section adjustment,Press the “seat section up” or “seat section down” on the hand control to implement function as up and down.The armrest is designed as knock-down structure. The user can use any side of the armrest according to actual locating space.
