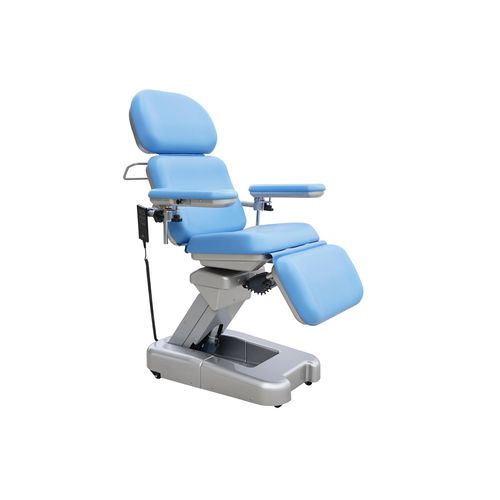

Electric blood donor chair DH-XD101-03

4-section

Dimension of chair:1700mm±15mm×560mm±10mm Height of chair:lowest 540mm±15mm, highest 830mm±15mm (exclude the cushion) Head section turning angle：±15° Back section turning angle：0～80° Seat section tilt angle:：0～12° Leg section turning angle：0～90° Arm board swing out：0～45° Arm board slide：100mm Arm board height adjustment：100mm Loading:160 kg Net weight:130 kg Product Description Connect and disconnect the hand control from blood donor chair.According to the direction of arrow, insert the aviation plug of hand control to locating pin which on the electric control panel. Tight the knurled nut, the control circuit is bonding. Press the buttons to operate the blood donor chair.Loose the knurled nut, pull out the aviation plug according to the direction of arrow can take off the hand control from the chair.Press the “Up” or “Down” button on the hand control to implement function as lift up and down.
