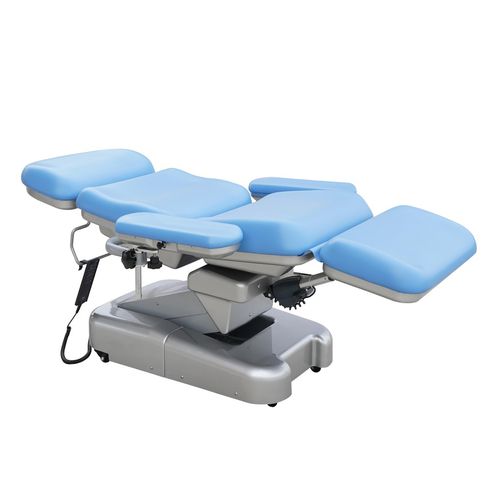

Manual blood donor chair DH-XD101-04

5-sectionheight-adjustable

Dimension of chair 1700mm±15mm×560mm±10mm Height of chair lowest 540mm±15mm, highest 830mm±15mm (exclude the cushion) Head section turning angle ±15° Back section turning angle 0～80° Seat section tilt angle: 0～12° Leg section turning angle 0～90° Arm board swing out 0～45° Arm board slide 100mm Arm board height adjustment 100mm Loading 160 kg Net weight 130 kg List of accessory Arm rest:1 pair Hand control:1 piece Wire:1 piece Spanner:1 piece Introduction of product Blood donation chair are especially for hospital, blood centers and clinics to proceed blood collection.This model is driven by liner actuator which make the operating flexible and with low noise. Both nurses and donors can operate it. Functions include up and down movement, back section turning, leg section turning, armrest turning, and synchronous movement of armrest and back section.Head board adjustment,The adjustment of head section is manual, press the “switch” and pull the head section front or back at the same time, when reach the angle wanted, release the switch to lock at the position.Armrest adjustment,The adjustment of armrest is manual, pull out the switch of armrest and move the armrest forward or backward at the same time, when in position wanted, release the switch.Put the arm on the armrest, push the armrest outward, then the armrest will in correct position.
