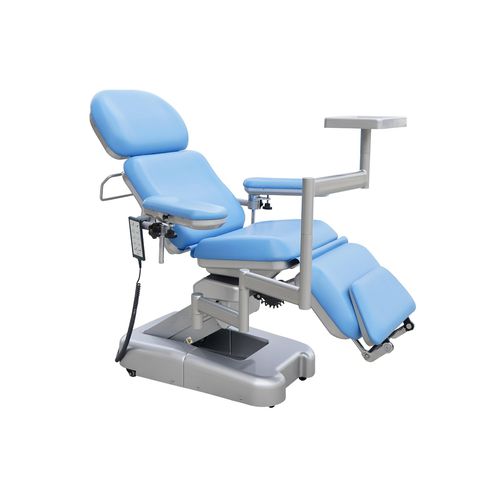

Electric blood donor chair DH-XD107-4

4-sectionwith footrest

Dimension of bed 1700mm±15mm×560mm±15mm Height of bed lowest 600mm±15mm, highest 830mm±15mm (exclude the cushion) Head section turning angle 18°～28° Back section turning angle -10°～65° Leg section turning angle -60°～8° Arm board swing out 0°～45° Arm board slide 100mm Arm board height adjustment 100mm Foot rest extension 100mm Foot rest fold angle 0°～90° Loading 160 kg Net weight 130 kg Operation methods Function of hand control and electrical panel The operator shall press the icon on the “hand control” to accomplish relevant operation according to the requirement. 1. Back section up and down 2. Leg section up and down 3. Foot rest extension and retraction 4. Chair up and down 5. Back section and leg section move together up and down Fixation and movement of base,The device has “adjustment spanner” which is to lock or release base. Adjust the support feet clockwise to lock base and anticlockwise to release it. Up/Down of chair,Press the “Chair Up” or “Chair Down” on the hand control to implement function as lift up and down.Back section adjustment and leg section combined movement,Press the “back section up” or “back section down” on the hand control to implement function as raise and down.The leg section and back section are moving together, that is, when back section raise up, the leg section goes down, while when the back section goes down, the leg section raise up. When the back section is horizontal, the leg section is also horizontal.
