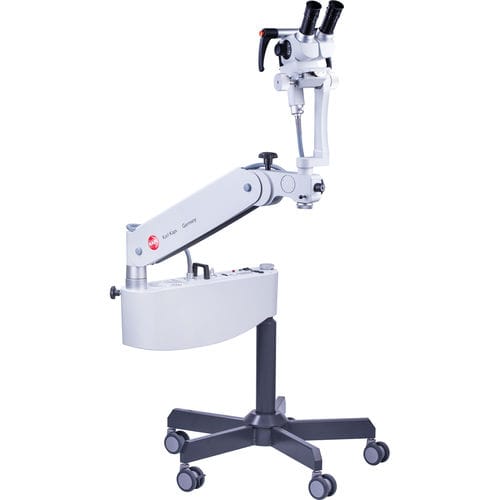

Colposcope on a mobile stand.
Our topseller colposcope for the gynecological practice
The Kaps SOM® 52 on a mobile stand is specially tailored to the needs of routine daily gynecological examinations with successful diagnosis and treatment.
With its modular system you can assemble your colposcope individually for your personal application.
The ergonomic design results in fatigue-free working for the user. The outstanding optics withh brillliant, three-dimensional images and large depth of field increase the success rate of correct diagnosis.
Extensive Range of Accessories
Choice of various lighting systems
Swing-in green filter
3-step, 5-step magnification changer or manual / motorized zoom
Choice of straight or inclined tube
Interchangeable objective lenses and eyepieces
From 5-fold magnification changer onwards, an aperture for increased depth of field is optionally available
Motorized version (zoom and focus)
Technical Data
Illumination
coaxial halogen illumination 12 V / 100 W (direct)
coaxial cold-light illumination 15 V / 150 W
- all coloscope outfits are equipped with a stand-by spare lamp integrated LED illumination -
Working distance / objective
250 mm or 300 mm are standard - other focal lenght on request
Fine focussing
12 mm with focusing objective f = 250 mm and f = 300 mm
40 mm manual
40 mm motorized
Binocular tubes
straight tube f = 125 mm, inclined tube f = 125 mm 45° as standard
straight tube f = 159 mm, inclined tube f = 159 mm 45° on request
wide-angle inclinable tube f = 182 mm 0 -210° on request
Oculars, Pairs
wide-angle, oculars with diopter WF 20 x V
- reticules on request
Magnification
3-step magnification changer
