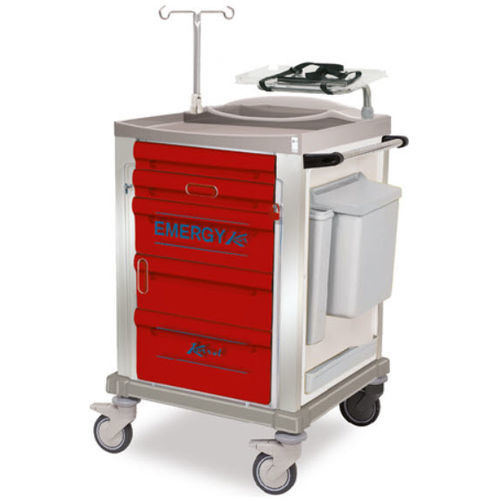

Medical trolley K820210X

emergencyfor instrumentsfor defibrillator

DIMENSIONS: mm 670x640x1600H CONSTRUCTION: solid, robust with the use of plastic components (technopolymer) and AISI 304 stainless steel sheet to obtain maximum lightness, maneuverability and ease of use. DESIGN: accurate down to the smallest details, it harmonizes with any environment. STRUCTURE: self-supporting and monocoque. TOP PART: large support surface in technopolymer plastic material made in low relief without sharp edges to facilitate cleaning and disinfection. Height from the ground mm. 1000. PUSH HANDLE: ergonomic, firmly attached to the structure on the right side of the trolley. FRONT PART: designed for central locking and for the insertion of modular drawers, without sharp edges with a rounded interior. Silent sliding of the drawers on guides with ball bearings, equipped with stoppers and designed for centralized key locking. DEFIBRILLATOR PLATE: plexiglass base (dim. 390x320x20H mm) and stainless steel support tube, 360° rotatable and lockable every 10°, with locking device by means of straps adaptable to any size of device. IV STAND: height-adjustable stainless steel with locking device. CARDIOMASSAGE PLATE: made of transparent plexiglass. STANDARD DRAWERS: made entirely of plastic material; no. 2 drawers dimensions 450x485x75H; no. 2 drawers dimensions 450x485x150H; no. 1 drawer dimensions 450x485x225H. CLOSURE: with drawers blocked by the cardiac massage plate and with disposable plastic seals (code 617363), nr. 20 supplied with the cart.
