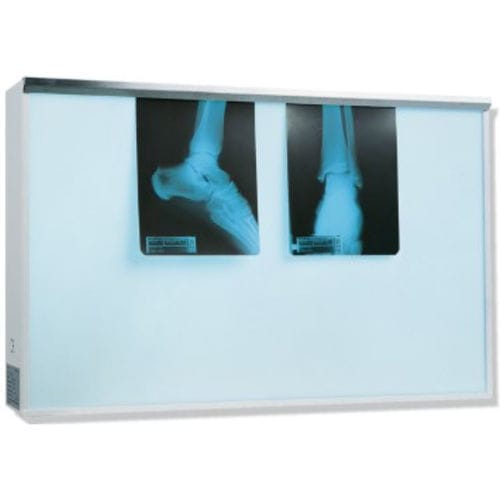

2-screen X-ray film viewer K606671

white lightwith switch

Dimensions: mm 1200x120x430h Powder coated metal structure. The opal diffuser serves to make the light source uniform. The lamps are blocked by special hooks to prevent them from detaching. The roller holder represents the anchoring system for the x-ray plates during reading. Protection against overcurrents is entrusted to a pair of fast fuses (one for each phase) of appropriate amperage. To protect against current leakage, an earth terminal has been created, connected via the mains cable to the earth system of the environment in which the equipment must operate. Built to perfection in application of Law 01/03/68, n. 186, Official Gazette n. 87. Complies with Directive 84/539/EEC of 17/09/1984 concerning electromedical equipment only. Complies with general CEI 62-5 and European CEI EN 60601-1 standards. Complies with the essential requirements of directives 89/336 EEC of 03/05/89 modified by directive 92/31 EEC of 28/04/92 regarding electromagnetic disturbances. The technical reference standards for compliance are the following: EN 55011 Conducted Emission, EN 55011 Radiated Emission, CEI EN Generic Emission. The material used for construction has the IMQ mark or equivalent. Class: I according to Directive 93/42 EEC – DL n. 46 of 02/24/97. Class: I according to CEI 62/5 standards (Electromedical equipment). Type: B
