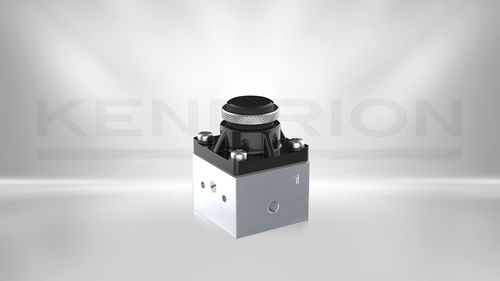

Oxygen pressure regulator 48.200.00.10.10
O2adjustable-flow

Oxygen pressure regulator - 48.200.00.10.10 - Kendrion Kuhnke Automation - O2 / adjustable-flow
Oxygen pressure regulator - 48.200.00.10.10 - Kendrion Kuhnke Automation - O2 / adjustable-flow
Add to favorites
Compare this product


Characteristics

Fluid type
oxygen, O2
Features
adjustable-flow

Description

These precision pressure regulators can be used in various applications. They convince through their small size, high flow rates and high accuracy. Their modular design allows a cost optimized configuration. High reliability and maintenance free use are ensured for a long lifetime. The pressure setting is done by an adjusting screw. The use of water can be realized with pressure regulator versions without bleeder ports. These pressure regulators are built with a very robust brass housing. The pneumatic connection is done by M5 inner thread. On request all pressure regulators can be adapted to different pressure levels or set to a specific output pressure. Seals can be changed from NBR to EPDM or Viton (FKM). Thereby it is easy to adapt the regulators to special media as oxygen (O2) or drinking water (H2O). Max. setting pressure - 1.0 bar Type of pneumatic connection - M5 Pressure range - 0 - 10 bar Ventilation - without secondary exhaust Medium - non-aggressive media Returning mechanism - Feder Ambient temperature - 0 ... +60 °C Materials - Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced
