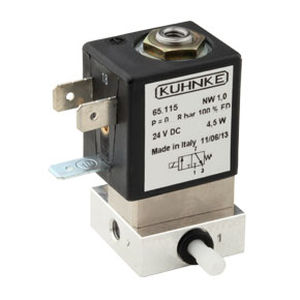

Medical valve 65.115

solenoid

These valves can be supplied in a wide variety of standard versions, e.g.: in three different base shapes (standard, flange and screw-in base), with connection for plug-in socket prefabricated or with flying leads, as 3/2 way NO/NC valve (2/2 way on request), also available as low watt version and with nominal orifice of 0.5, 1, 1.6 or 2 mm. For plug-in sockets, current indication and erasing diode please see valve accessories Function - 3/2-way NC Actuation type - electrically actuated Duty cycle - 100 % ED Type of electric connection - Plug-in socket Medium - Filtered (5 µm), lubricated and non lubricated air Nominal power - 4.5 W Nominal voltage - 24 V DC Returning mechanism - Spring Protection class - IP65 Ambient temperature - -10 ... +60 °C Valve type - Poppet valve Materials - Base: Brass, seal: NBR Actuation - directly controlled Identification number - 12173 Pressure range - 0 - 8 bar Nominal orifice - 1.0 mm Type of pneumatic connection - Flange Kv-value - 0.45 l/min Size - 20 mm
