X-ray radiation shielding screen 312/E 78cm wide series

examination table-mounted0.50 mm

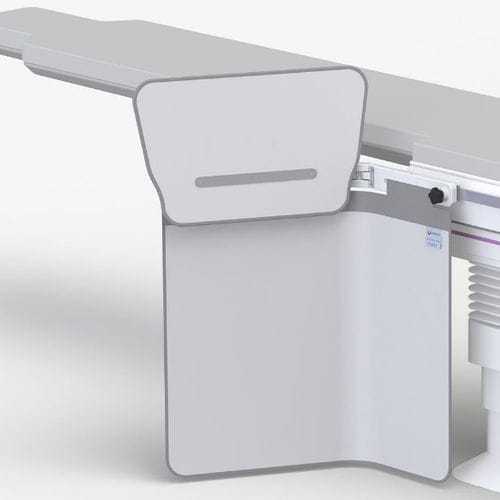

78 cm lower body table shields with a single friction pivot and optional top shields. - 78 cm wide table shields reduce exposure to scatter radiation emanating from the table or patient’s body. - Easily mounts to either side of the table allowing pivotal arm to always face the head end. - Lightweight, durable structure supporting a flexible lead curtain (0.5 mm lead equivalent). The curtain is available in one piece or split into three separate overlapping panels. - 78 cm wide x 70 cm high curtain providing a safe zone of occupancy. - 29 cm wide attachment bracket slides onto a 25 mm or 28.6 mm high tableside rail (max. 11 mm depth). - A pivotal arm with a single friction pivot can swivel outwards to form a 49 cm wing. - Self-adjusting friction pivot ensures no unwanted curtain movement even when the table is tilted. - Curtains 0.5 mm lead equivalent layer is bonded to its outer covering meaning the protective layer cannot tear or fall away unnoticed. - Curtain forms around an under table x-ray tube without impeding movement. - If required, the curtain can also hold two semi-flexible top shields, 1 x 57 cm & 1 x 27 cm (312/DS/3.30). 312/E-005 One piece table shield without top shields 312/E-006 One piece table shield with a 57 cm wide lift-off top shield (312/DS/3.32) 312/E-007 One piece table shield with a 57 cm wide fold-down top shield (312/DS/3.33) For shields with three separate overlapping panels add /P to the product codes above.
