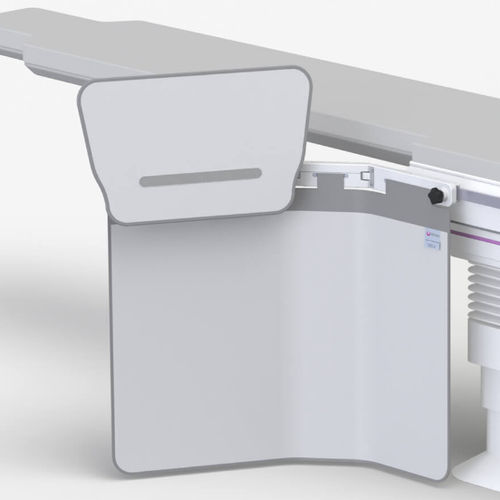

X-ray radiation shielding screen 312/E 92cm wide series

examination table-mounted0.50 mm

92 cm wide lower body table shields with a double friction joint and optional top shields. - Reduces exposure to scatter radiation emanating from the table or patient’s body. - Easily mounts to either side of the table allowing pivotal arm to always face the head end. - Lightweight, durable structure supporting a flexible lead curtain. - Curtain is available in one piece or split into three separate overlapping panels. - 92 cm wide x 70 cm high curtain providing a safe zone of occupancy. - 29 cm wide attachment bracket slides onto a 25 mm or 29 mm high tableside accessory rail (max. 11 mm depth). - Securing handle position allows the shield to overhang the rail end or be repositioned further along the table. - Pivotal arm with double friction joint can swivel outwards to form a 46 cm or 63 cm wing. - Self-adjusting friction pivot ensures no unwanted curtain movement even when table is tilted. - Curtains 0.5 mm lead equivalent layer is bonded to its outer covering meaning the protective layer is unable to tear or fall away unnoticed. - Curtain forms around an under table x-ray tube without impeding movement. - If required the curtain can also hold three semi-flexible top shields, 1 x 57 cm and 2 x 27 cm (312/DS/3.30). 312/E-010 One piece table shield without top shields 312/E-011 One piece table shield with a 57 cm wide lift-off top shield (312/DS/3.32) 312/E-012 One piece table shield with a 57 cm wide fold-down top shield (312/DS/3.33) For shields with three separate overlapping panels add /P to the product codes above.
