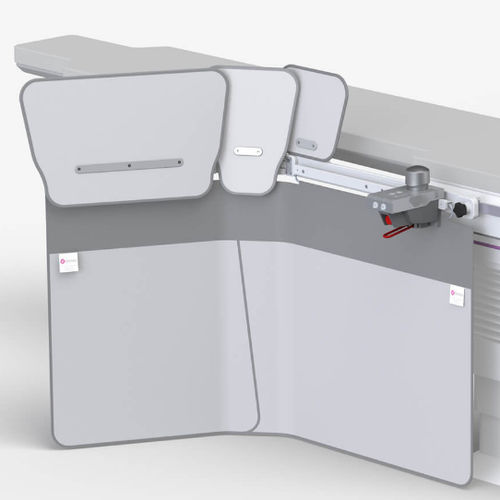

X-ray radiation shielding screen 312/DS-039/6/3 137cm collision resilient

examination table-mounted0.50 mm

Collision resilient table shield with two overlapping curtains, double friction joint, 57 cm integrated accessory rail and set of top shields. Description 137 cm wide X-ray protection table shields are supplied with two integrated accessory rails: 1 off, 25 mm X 10 mm x 57 cm long integrated accessory rail (fitted) 1 off, 28.6 mm X 9.5 mm x 57 cm long integrated accessory rail (supplied) Reduces exposure to scatter radiation emanating from the table or patient’s body. Easily mounts to either side of the table allowing the pivotal arm to always face the head end. Lightweight, durable structure supporting a two-piece flexible lead curtain (0.5 mm lead equivalent). Fitted with a patented device that enables upward movement of the pivotal arm if in collision with C-arm equipment. The main shield is a 137 cm wide x 75 cm high curtain providing a safe zone of occupancy. The 72 cm wide attachment bracket slides onto a 25 mm or 28.6 mm high tableside rail (max. 11 mm depth). Securing the handle position allows the shield to overhang the rail end or be repositioned further along the table. 57 cm long integrated accessory rail – one 25 mm x 10 mm supplied and fitted, one 28.6 mm x 9.5 mm supplied. A pivotal arm with a double friction pivot can swivel outwards to form a 48 cm or 65 cm wing. The self-adjusting friction pivot prevents the curtain from moving whilst the table is tilting. The curtain’s 0.5 mm lead equivalent layer is bonded to its outer covering meaning the protective layer cannot tear or fall away unnoticed. Curtain forms around an under-table X-ray tube without impeding movement.
