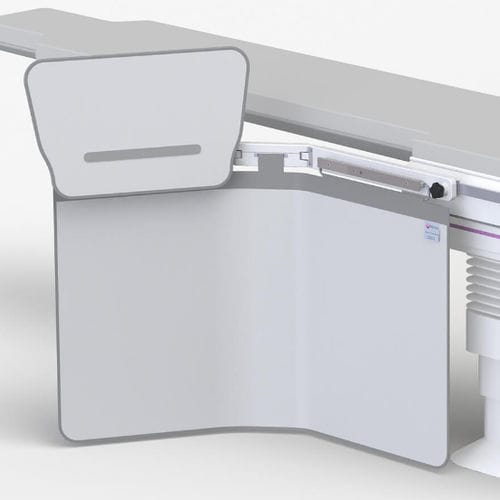

X-ray radiation shielding screen 312/E 114cm wide series

examination table-mounted0.50 mm

114 cm wide lower body table shields have a double friction joint, 35 cm long integrated accessory rail and optional top shields. Supplied with: 1 off, 25 mm X 10 mm x 35 cm long integrated accessory rail (fitted) and 1 off, 28.6 mm X 9.5 mm x 35 cm long integrated accessory rail Product codes ending /8 are supplied with: 1 off, 25 mm X 7.7 mm x 35 cm long integrated accessory rail (fitted) - Reduces exposure to scatter radiation emanating from the table or patient’s body. - Easily mounts to either side of the table allowing pivotal arm to always face the head end. - Lightweight, durable structure supporting a flexible lead curtain. The curtain is available in one piece or split into three separate overlapping panels. - 114 cm wide x 70 cm high safe zone of occupancy. - 51 cm wide attachment bracket slides onto a 25 mm or 28.6 mm high tableside rail (max. 11 mm depth). - Pivotal arm with a double friction joint can swivel outwards to form a 46 cm or 63 cm wing. - Self-adjusting friction pivot ensures no unwanted curtain movement even when the table is tilted. - Curtains 0.5 mm lead equivalent layer is bonded to its outer covering meaning the protective layer cannot tear or fall away unnoticed. - Curtain forms around an under table x-ray tube without impeding movement. If required the curtain can also hold three semi-flexible top shields, 1 x 57 cm, 1 x 27 cm (312/DS/3.30), and 1 x 27 cm cropped (312/DS/3.41). 312/E-020 shield without tops 312/E-021 shield with 57cm lift-off top 312/E-022 shield with 57cm fold-down top For shields with three separate overlapping panels add /P to the product codes above.
