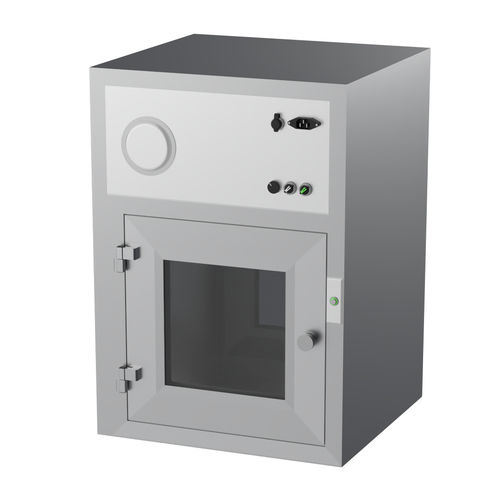

Clean room pass box DYNAMIC

Dynamic– in other words - Active pass boxes offer full protection by inflating themselves. We recommend this model especially for transferring products from a cleanroom to a non-cleanroom environment. They are an optimal choice in case your product might need to stay in the box for a longer period. Active boxes do not need any additional infrastructure because they already have everything built in that is needed for complex air handling. They also include a HEPA filter. Outer dimensions w*d*h (mm) - 600*600*860 Inner dimensions w*d*h (mm) - 500*520*500 Material - AISI 316L Stainless steel /Anodized AL No of doors - 2 Air system - With integrated fan and HEPA filter Filtering - Yes, HEPA H13 Particle collection efficiency (%) - 99.95% Ducting - Integrated Shaping - Symmetrical shape for simple wall installation Application - For ISO-14644/GMP clean rooms, laboratories. Clean – and high efficiency filtered material transfer solution between cleanroom environments, or between clean zone – outer rooms. Standard fittings - -AISI 316L stainless steel body -Anodized Aluminum doors and box fronts -Durable, 3D adjustable hinges -Turnable hygienic S/S knob -Silicone sealed airtight joints -Glazed doors -Interlocking operation with remote switchboard -H13 HEPA filtering -Integrated brushless fan motor -Hidden air return channel Power supply - 220 Volts / 50 Hz Interlocking voltage - 24V DC OPTIONS UV-C Ultraviolet germicidal lamp - Available Interlocking timer for UV-C lamp effectiveness - Available Non-silicone version (sealed with Polymer) - Available ATEX Zone II. explosion proof version (mechanical interlocking) - Available
