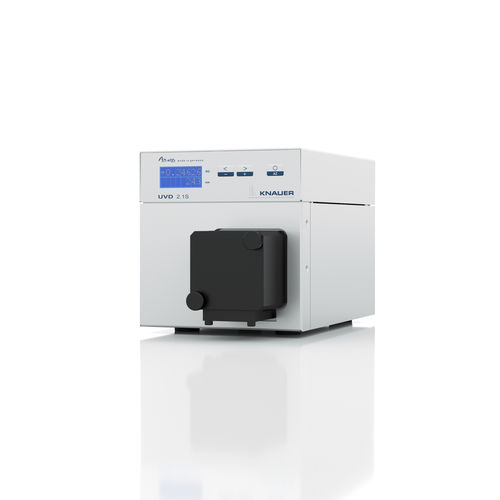

HPLC chromatography detector AZURA UVD 2.1S

UV

The AZURA UVD 2.1S is a highly competitive single variable wavelength UV detector for HPLC. It offers excellent technical specifications for routine laboratory work. With its small footprint, it is one of the smallest detectors for HPLC on the market. The UVD 2.1S comes in the novel small AZURA housing. The installed deuterium lamp covers a wavelength range from 190 to 500 nm. The UV detector can be controlled with OpenLab EZChrom Edition®, ChromGate®, PurityChrom Bio and ClarityChrom® software, as well as from the front panel (stand-alone operation), via LAN, via RS-232, or through analog input/output; allowing it to be integrated into almost any LC system. Due to a smart design, the flow cell is easily accessible and can be changed very quickly. You can choose between a wide range of flow cells for analytical or preparative LC applications with flow rates from 10 μl/min up to 10 l/min. Also available as a module for the new AZURA ASM 2.2L. KEY FEATURES Compact Large choice of flow cells 60 years experience Made in Germany TECHNICAL DATA Detection Detector type - Variable single wavelength UV detector Detection channels - 1 Light source - Deuterium (D²) lamp with integrated GLP chip Wavelength range - 190 - 500 nm Spectral bandwidth - 13 nm at Hα line (FWHM) Wavelength accuracy - ± 3 nm Wavelength precision - 0.7 nm (ASTM E275-93) Noise - ± 20 µAU at 254 nm (ASTM E1657-98) Drift - 300 µAU/h at 254 nm (ASTM E1657-98) Linearity - > 2.0 AU at 274 nm (ASTM E1657-98) Maximum data rate - 50 Hz (LAN)/20 Hz (Analog)/10 Hz (RS-232) Flow cell - Not included (see Accessories / Spare parts) Time constants - 0.00 / 0.02 / 0.05 / 0.1 / 0.2 / 0.5 / 1.0 / 2.0 s
