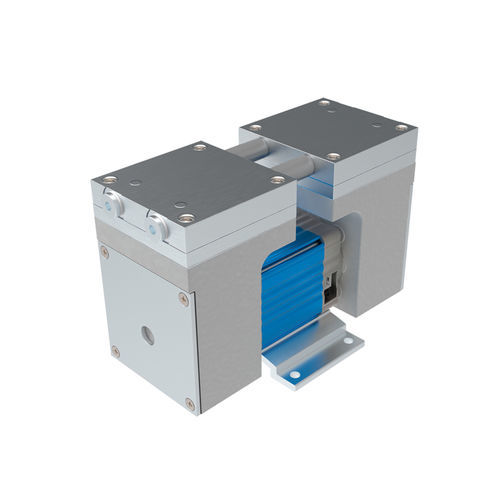

Medical vacuum pump N 938.1.2diaphragmoil-free
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- diaphragm
- Options
- oil-free
- Flow
53 l/min
(14 us gal/min)- Pressure
1 bar
(14.5 psi)- Weight
2.1 kg
(4.6 lb)
Description
KNF diaphragm gas pumps transfer or compress gases and vapors and generate vacuum without contaminating the media. They are available with options for application requirements related to size, motor, control, voltage, chemical resistance, safety, vibration, noise and temperature resistance. All pump types offer oil-free operation.
Technical Details
Ultimate Vacuum (max.) - 140 mbar (abs.)
Valve Material Options - FPM
Diaphragm Material Options - EPDM
Pump Head Material Options - Aluminium
Motor Type Options - Brushless DC
Features
Benefits
Adjustable performance
Digitally adjustable motor
Contamination free transfer
Low sound level
Excellent reliability
High performance-to-size ratio
Special Features
Diaphragm pump
Applications
Analytical instruments
Vacuum technology
Emission monitoring
Gas analytics
Fuel cells
Medical equipment
