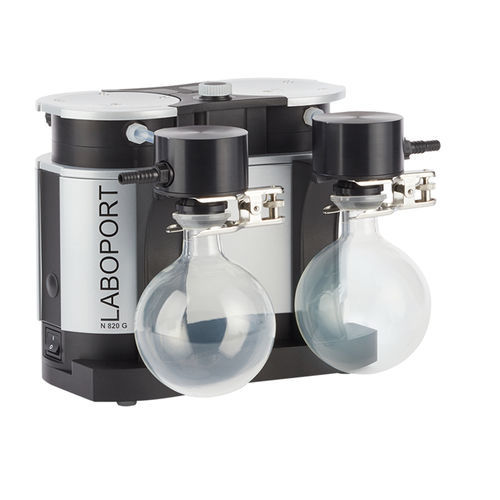

Laboratory vacuum pump LABOPORT® SR 820 G
diaphragm

Laboratory vacuum pump - LABOPORT® SR 820 G - KNF - diaphragm
Laboratory vacuum pump - LABOPORT® SR 820 G - KNF - diaphragm
Add to favorites
Compare this product


Characteristics

Applications
laboratory
Technology
diaphragm
Flow

20 l/min
(5.28 us gal/min)

Pressure

0.1 bar
(1.45 psi)

Weight

10.7 kg
(23.6 lb)

Width

282 mm
(11.1 in)

Height

234 mm
(9.2 in)

Description

ATEX certification is not available in China. Please refer to the CN data sheet for the Chinese market. Ultimate Vacuum (max.): 6 mbar (abs.) Ideal for extremely aggressive/corrosive gases and vapors High level of vapor and condensate compatibility Integrated gas ballast valve Integrated rotational speed control Chemically-resistant vacuum pump system comprising chemically resistant diaphragm vacuum pump, base plate and two separator flasks on suction and pressure side. Based on the high level of vapor and condensate compatibility the system is perfectly suited for extremely aggressive / corrosive gases and vapors. Technical Details Ultimate Vacuum (max.) - 6 mbar (abs.) Applications Filtration Degassing Vacuum oven Fluid aspiration Centrifugal concentration Benefits Ideal for extremely aggressive/corrosive gases and vapors High level of vapor and condensate compatibility Integrated gas ballast valve Integrated rotational speed control 3-color status display for in operation / stand-by / error Compact, quiet and reliable Start against ultimate vacuum of the pump ATEX compliant to (Ex) II 3/-G Ex h IIB+H2 T3 Gc internal atmosphere only - not available for the Chinese market
