Suction pump FM 50
electricdiaphragmfor liquids

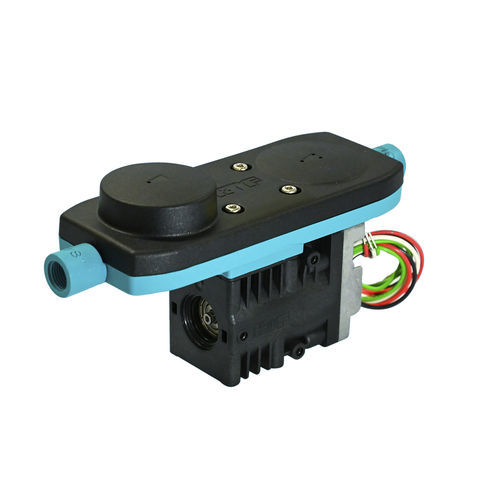

Suction pump - FM 50 - KNF - electric / diaphragm / for liquids
Suction pump - FM 50 - KNF - electric / diaphragm / for liquids
Add to favorites
Compare this product


Characteristics

Applications
suction
Operation
electric
Technology
diaphragm
Fluid type
for liquids
Configuration
compact
Flow

0.5 l/min
(0.13209 us gal/min)

Pressure

1 bar
(14.5 psi)

Description

Suction Height (max.): 3 mH₂O KNF diaphragm liquid pumps combine maximum performance with minimum size. The use of chemically resistant materials enables the pumps to convey virtually any type of liquid, whether neutral or corrosive. They are dry-running, self-priming, maintenance free, and available with many different motor- and hydraulic connection options. Technical Details Suction Height (max.) - 3 mH₂O Valve Material Options - EPDM, FFKM Diaphragm Material Options - EPDM, PTFE Pump Head Material Options - PP Motor Type Options - Brushless DC Benefits Excellent reliability Low pulsation NSF certified Maintenance-free Can run dry FDA-approved materials available Self priming ​Robust against varying parameters ​Linear and predictable flow High level of accuracy Customized calibration Adjustable performance Highly resistant to aggressive media Digitally adjustable motor Special Features Low pulsation NSF certified
