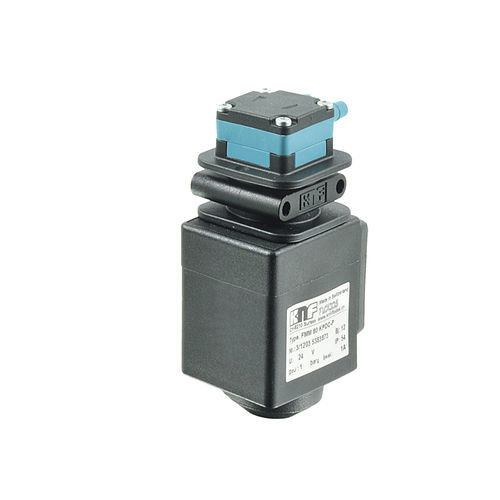

Laboratory pump FMM 80

hydraulicdiaphragmfor liquids

KNF diaphragm liquid pumps combine maximum performance with minimum size. The use of chemically resistant materials enables the pumps to convey virtually any type of liquid, whether neutral or corrosive. They are dry-running, self-priming, maintenance free, and available with many different motor- and hydraulic connection options. Technical Details Suction Height (max.) - 4 mH₂O Valve Material Options - EPDM, FFKM Diaphragm Material Options - EPDM, PTFE Pump Head Material Options - PP, PVDF Motor Type Options - DC-P (PFM) Benefits Excellent reliability Contamination free transfer Maintenance-free Highly resistant to aggressive media Self priming Can run dry Single-stroke dispensing Adjustable stroke volume Flow-tight in Off mode (NC valve) Adjustable performance Special Features High IP class (>44) Applications Inkjet printing Medical equipment Lab equipment Semi-conductors Cleaning and disinfection
