Laboratory bioreactor 62

for microbial fermentationcoolingsterilizable in-situ

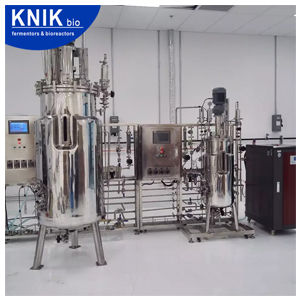

Fermentor|bioreactor（500Liters ,Mechanical sealing system at the bootom of the fermenter;Double mechanical Seal） Model: BLBIO -500SBA Total volume:500 liters Working volume: 150L -400 liters Material: 316L stainless steel with material contact to the other 304 stainless steel Sterilization method: Manual situ sterilization(SIP options) Control system: Siemens PLC, industrial LCD touch computer control, parameters can be set to store, can be remotely connected to the computer through the USB interface, the data Working volume 250 to 400 liters and The main material of the fermenter is made by 316Lstainless steel. The design pressure: P(inside)= 0.3Mpa, P(interlayer)= 0.3Mpa, The polishing precision: Ra0.4～0.6, the ratio between diameter and height: 1:2.6 Stirring system Mechanical sealing system at the top of the fermenter; high-powered stirring oar, antifoam oar; AC electrical machine: infinite speed variation; rpm in the fermenter: 70~500rpm±1%,The height of the stirring oar can be adjusted, too. Temperature detection and control Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), autocontrol (cooling water+5℃)~65℃±0.1℃，temperature probe(US) pH detection and control 2.00-12.00±0.05pH, autocontrol by adding acid and base, pH sensor (Mettler, Switzerland) and shielding lead (Mettler, Switzerland). fermenter is autocontrolled with peristaltic pump DO detection and control 0-150±3% displaying precision 0.1%, sensor (Mettler, Switzerland) and shielding lead(Mettler, Switzerland)
