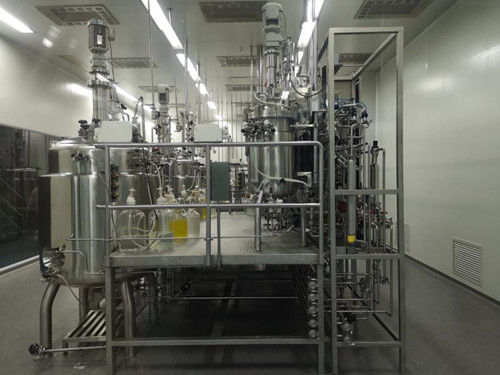

Laboratory bioreactor

for microbial fermentationfor vaccine development

Double mechanical seal: double seal secure protection BLBIO-XV series fermenter is our company's unique culture bacterial vaccine equipment: fully sealed, zero leakage, no pollution, maintenance-free. Double mechanical seal, completely solve the problem of contamination of biological products tank culture.Fermentation of various parameters such as, pH, DO, temperature and speed can be monitored by the controller, all the data and control parameters can be passed to the controller or computer. Compact structure, the various components can be integrated on the fermentation system. The upper driver can choose to use direct coupling mechanical stirring or lower driving magnetic indirectly coupled mechanically mixing method, the structure is simple, stable operation. Diameter height ratio: 1: 1 to 2.5; liquid filling factor: 70% Tank: made of 316L stainless steel, easy to clean; polished stainless steel precision Ra≤0.4; Tank features: sterile filter intake and exhaust condenser, including intake and exhaust treatment systems, motor: fermentation tank dedicated sew AC motor; the shaft seal or dual-channel magnetic stirring to ensure zero leakage Ventilation: using multiple ventilation, thermal mass flow meter to automatically control the air flow and oxygen flow Pressure: Pressure Control Range: 0-0.3Mpa, pressure regulating valve outlet pressure regulator, digital remote display. Mixing system: mixing form: straight, oblique blade impeller (multilevel)
