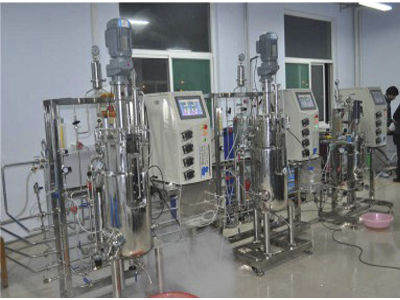

Laboratory bioreactor 85

for microbial fermentationfor parallel synthesis

With more than one fermenter (the same volume or different volumes available) composed of a conjoined system, may be suitable for parallel orthogonal experiments provide the most optimized way to process research and shorten study of valuable time. The key is that this device configuration parameters repeatability better. Nominal capacity: 10 liters a desk 50L2 station; Diameter height ratio: 1: 2.5; liquid filling factor: 70% 50 l tank: The main material is stainless steel 316L tank, the tank no dead ends; seed fermenter with a dedicated sampling pipes, discharge valve, shift. Using a large tank level perspective endoscopic observation, 12V safety depends on light, with temperature, PH, DO, foaming, liquid interface, vaccination mouth, feeding the mouth, and a number of alternate ports, all welds sturdy neat appearance . Tank: design pressure 0.35Mpa jacket: design pressure 0.3Mpa, optimized diversion designed to improve the uniformity of the exchange efficiency and tank temperature Tank features: John Crane mechanical seals, intake sterile filter, exhaust condenser, including air intake system distributor, flame inoculation mouth (also doghouse and cleaning the mouth), the discharge opening, sampling ports, feeding mouth; five electrode automatic control parameters are: PH electrode, DO electrode, anti-foaming electrode, temperature probe mouth; every four cans were automatically controlled peristaltic pump up the acid / base / bubble enemy / training agents;
