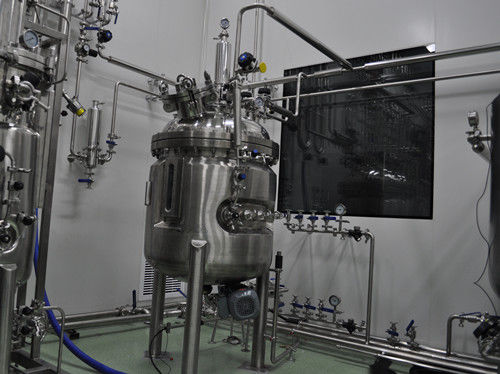

Laboratory bioreactor 225

for the pharmaceutical industrymodular

Preparation Tank for pharmaceutical bioprocess Preparation Tank Product technical description: Specification: 10L~15000L Material: stainless steel 316L or stainless steel 304 Surface treatment: inner surface roughness Ra0.28~0.6μm mechanical polishing, passivation or electric polishing (optional) Outer surface roughness Ra0.6~0.8μm matte finish Stirring: Magnetic stirring at the bottom Pressure: atmospheric pressure or pressure vessel (-0.1~1Mpa) Structure: single layer cylinder, with jacket, with jacket and insulation Jacket form: full jacket, honeycomb jacket and coil jacket Insulation material: using rock wool Configuration: Air respirator, thermometer, level gauge, sanitary inlet, sight glass, universal rotating cleaning ball or according to customer requirements. Pressure manufacturing standard: GB150-1998, ASME or PED/23/EC
