Laboratory bioreactor 222

for microbial fermentationcell cultivationfor the pharmaceutical industry

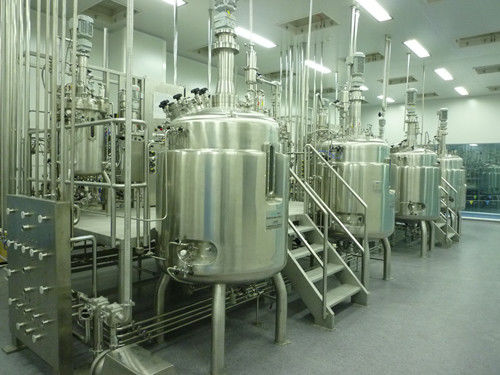

90L1400L pertussis vaccine workshop fermentation tank The BIO-XV series fermentation system is our company's unique equipment for bacterial vaccine cultivation: fully sealed, zero leakage, no pollution, and maintenance-free. The double mechanical seal completely solves the problem of bacterial contamination in the cultivation of biological product tanks. Various parameters in fermentation, such as pH, DO, temperature and stir speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer. The structure is compact, and various components can be integrated into the fermentation system. It can choose to adopt the direct coupling mechanical stirring mode driven by the upper motor or the indirect coupling mechanical stirring mode driven by the bottom magnetic force, with simple structure and stable operation. Diameter to height ratio: 1:1~2.5; filling factor: 70% Tank body: 316L stainless steel, easy to clean; stainless steel inner polishing accuracy Ra≤0.4; Tank function: intake sterilization filter, exhaust condenser, including intake and exhaust treatment system, motor: special Sew AC motor for fermentation tank; double seal on the upper shaft end to ensure zero leakage Ventilation: using multi-channel ventilation, thermal mass flow meter automatically controls air flow and oxygen flow Pressure: Pressure control range: 0-0.3Mpa, pressure regulating valve adjusts the outlet pressure, digital remote transmission display. Mixing system: Mixing form: straight and pitched blades (multi-stage) Fermentation pH control function: intelligent PID control, Mettler PH electrode;
