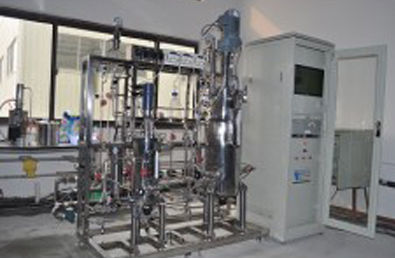

Laboratory bioreactor BLBIO- XABC-D

for microbial fermentation

Two stage fermentors with lid lifting system Nominal volume: 10L, 50L; Diameter height ratio: 1: 3; liquid filling factor: 70% 10 l 50 l tank: The main material is stainless steel 316L tank, the tank no dead ends; seed fermenter with a dedicated sampling pipes, discharge valve, shift. Using a large tank level perspective endoscopic observation, 12V safety depends on light, with temperature, PH, DO, foaming, liquid interface, vaccination mouth, feeding the mouth, and a number of alternate ports, all welds sturdy neat appearance . Tank: Design pressure 0.3Mpa jacket: design pressure 0.3Mpa, optimized diversion designed to improve the uniformity of the exchange efficiency and tank temperature Tank features: John Crane mechanical seals, intake sterile filter, exhaust condenser, including air intake system distributor, flame inoculation mouth (also doghouse and cleaning the mouth), the discharge opening, sampling ports, feeding mouth; five electrode automatic control parameters are: PH electrode, DO electrode, anti-foaming electrode, temperature probe port; four were automatically controlled peristaltic pump up the acid / base / bubble enemy / training agents; Motor: fermentation tank dedicated motor, ensure that the motor can operate in harsh environments; Ventilation: The way deep ventilation, rotameter display, adjust the gas flow, the air tank is uniform gas distribution according to process requirements; using precision 0.2μm sterilizing filter (Dominica or Shanghai Yiming), anti- material backflow devices to ensure the safety and greatly extend the service life;
