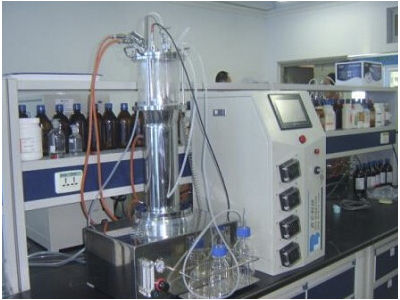

Laboratory bioreactor BLBIO-5GQ

Airlift glass fermenter (off-site sterilization) 5L stirred glass airlift fermenter BLBIO-5GQ Nominal capacity: 1/2/3/5/7 liter Diameter height ratio: 1: 4-5; liquid filling factor: 70% Tank: 316L stainless steel tank Jar bottom part of the tank and jacket on the part of the high temperature, corrosion-resistant borosilicate glass tank in line with the fermentation process. Mixing system: flow mixing, built-in draft tube, special ventilation distribution mode, rotameter display, adjust the gas flow according to process requirements Sterilization: off-site sterilization; Technical parameters PH control: Intelligent PID control, peristaltic pump automatically fill acid / base; range: 2 ~ 12ph; control accuracy: ± 0.02ph, Resolution: 0.01ph; DO control: Intelligent PID control, and feeding speed association; range: 0 to 100%, the control accuracy: ± 3%; Resolution: 0.1%; Temperature control: intelligent PID control, automatic control; electric heating and water cooling; range: cooling water temperature + 5 ~ 60 ℃; Accuracy: ± 0.1 ℃; Foam Control: peristaltic pump complement defoamers, automatic control; Ventilation: manual adjustment, meter display; Tank pressure: manual adjustment, the gauge display; range: 0 ~ 0.20Map; BLBIO-A type, B, C-type, D-type control system Optional: Siemens S7-200 series PLC control system + 10-inch LCD touch screen, full Chinese menu and interface; USB flash drives can be used for data transmission, sampling and display tank data and browsing data analysis system, a reading setting.
