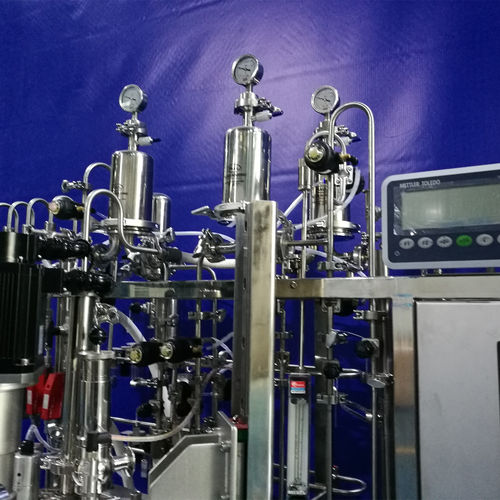

Laboratory bioreactor

for cell culture

100L upper magnetic stirring Cell Culture Bioreactor Working volume: 10/20/30/50/80/100 / 200L Body Material: 316L stainless steel Transmission: Transmission couplings mechanical stirring double seal or flying mechanical stirring magnetic drive (no mechanical seals) on Turbine impeller Gas: Rd gas control (automatic optional), and physical bubble gas microbubble delivery system (special) Sterilization occurs: in-situ automatic sterilization program Control Systems: BIO-D biological process controller (Siemens PLC + Taiwan Advantech IPC) Germany Proudly solenoid valves, angle seat valve and diaphragm Model Comments: BLBIO- XABC-D X- tank total volume: A- tank materials: -G: Glass / -S: stainless steel tank -V animal cell vaccine -C -M enzyme reactor tank B- Transmission: -C: magnetic drive mechanical stirring / -J Direct drive mechanical agitation / -Q -S solid flow stir stir -G provide light C - add optional features -A automatic sterilization - inaction manual manual situ sterilization sterilization -U -Y glass lid automatically upgrade D - -A controller model for industrial control computer + Control Module - inaction B controller, for our standard controller -C 10-inch LCD touch screen + PLC -D 15-inch LCD touch screen + PLC + imports transmitter Siemens device
