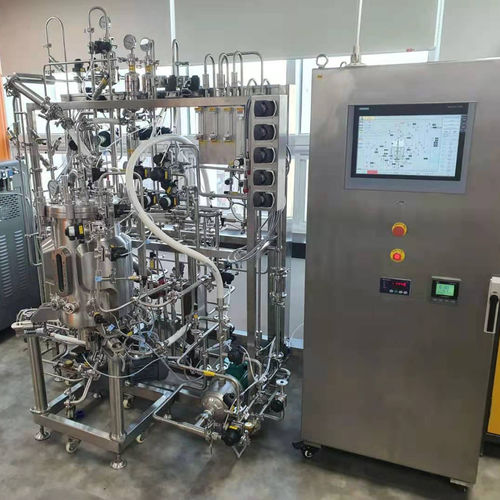

Cell culture bioreactor

total volume： 35L Working volume Full volume Working volume： 70% Diameter ratio： 1: 2.2-3 1: 1.5-1.8 .......... Design tank pressure： 0.3MPa ...3.... barg Tank's internal bile material： 316L 304 Test report of tank materials： 3（SGS）：Top cover, straight tube body, lower head No Internal polishing accuracy： Ra0.2 Ra0.4 Ra0.8 Internal electropolishing Internal pickling passivation External surface polishing treatment： Ra0.8 sand blasting Internal polishing test report： 3（SGS）：Top cover, straight tube body, lower head No Pressure vessel certificate： provide No Conform to GMP standard： Provide relevant documents No Viewing mirror： Side-view mirror Top-view mirror No floodlight： Side installation Top installation No Sterilization temperature： 100-130 °C，The sterilization time： 0-60min，The highest temperature： 135 °C Sterilization mode： In situ automatic sterilization (Can be sterilized separately for empty and full vessel) Manual operation Sampling valve： Denmarkkeofitt Bürkert No Sampling valve sterilization mode：Manual sterilization Tank bottom valve： Bürkert GEMÜ No Tank bottom valve sterilization mode：Automatic sterilization There are three optional filling liquid interfaces; A shallow aeration tube interface; A deep ventilation tube interface； A top flame inoculation interface；A side seed transfer interface Cleaning: high pressure cleaning interface is installed at the top； Tail gas condenser： yes No Exhaust gas incinerator： yes No
