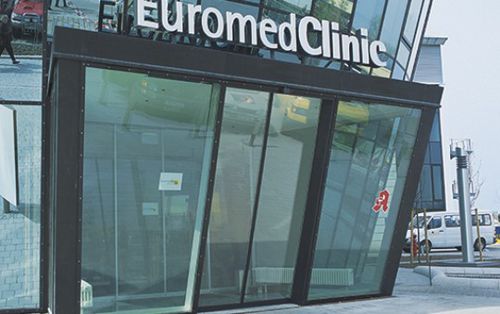

Protection door S 20 SU

for healthcare facilitiesslidingglass

The underfloor sliding door S 20 SU is a proven alternative to the conventional overhead mounted sliding door drive and meets the requirements of modern buildings. The virtually invisible drive system enhances every entrance area, allowing buildings to appear at their best. The doors can be tilted up to 10° and integrate well even in unusual architectures. Passageways up to a maximum width of 3 000 mm and a height of 3 000 mm can be realized compliant with standards (EN 16005). Length - 1700 – 6100 (2 x A +100) mm - mm Height - 170 mm - mm Depth - 300 mm - mm Width of passage A - 800 - 3000 mm - 800 - 1500 mm Height of passage G - 2200 - 3000 mm - 2200 - 3000 mm Total width - 1700 - 6100 mm - mm Total height J - 2259 - 3059 mm - 2259 - 3059 mm Glazing - 10 - 24 - 10 - 24 Door leaf weight - 2x 200 kg - 1x 250 kg Power supply voltage - 230 V AC 50 / 60 Hz - 230 V AC 50 / 60 Hz Rated power - 250 W - 250 W Consumption in standby mode - 15 W - 15 W Drive - System20 Ambient temperature - –15° to +50°C - –15° to +50°C Humidity range - Up to 85 % relative humidity, non-wetting - Up to 85 % relative humidity, non-wetting Wind load - Wind load design depends on a range of parameters - Wind load design depends on a range of parameters Type of protection - IP 54 - IP 54
