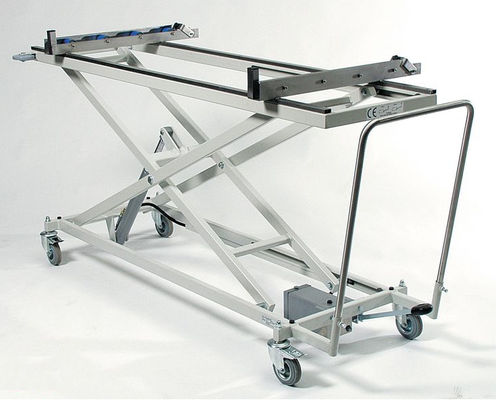

Coffin trolley HTW 50/250-R1-M-Q

transportstainless steelhydraulic

The lift and transport truck has a rugged, torsion-resistant frame structure and is made of powder coated steel (grey – RAL 7035). Additionally, it has a smoothly running, integrated hydraulic unit for foot-actuated vertical adjustment for easy handling. 4 steerable solid rubber wheels, 2 of them lockable, 1 enabling locking as regards to the direction, d = 125 mm with special roller bearings, permanently lubricated and maintenance-free, which ensure an absolutely noiseless movement. The extremely low deadweight permits straightforward shunting and operation of the lift and transport truck. A special valve ensures even lowering at various loads. On the top the lift and transport truck is equipped with two U-profiles to accommodate the body tray (Type LM 80/101) with 4 wheels. The slide handle of the lift and Transport truck can be removed. An anti-collision buffer is mounted to the front end. TECHNICAL DATA Dimensions lowest position W/D/H:2150 x 750 x 260 mm Dimensions highest position W/D/H:2150 x 750 x 1610 mm Carrying capacity:max. 250 kg Dead weight:approx. 100 kg
