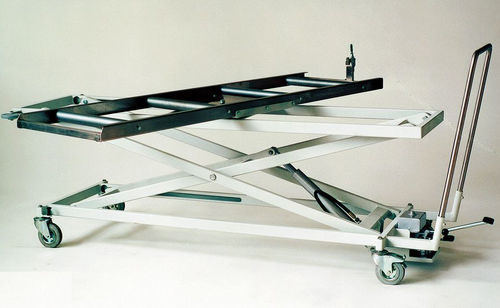

Coffin trolley HTW 50/250-R1-M-1650-SL

transportstainless steelhydraulic

The lift and transport truck has a rugged, torsion-resistant frame structure and is made of powder coated steel (grey – RAL 7035). Additionally, it has a smoothly running, integrated hydraulic unit for foot-actuated vertical adjustment for easy handling. 4 steerable solid rubber wheels, 2 of them lockable, 1 enabling locking as regards to the direction, d = 125 mm with special roller bearings, permanently lubricated and maintenance-free, which ensure an absolutely noiseless movement. The extremely low deadweight permits straightforward shunting and operation of the lift and transport truck. A special valve ensures even lowering at various loads. The additional structure (slewing ring) can be slewed through 90° to the right and left side, and can be fixed in these positions. A stainless steel roller track comprising 6 carrying rollers of corrosion-resistant material and plastic coating has been arranged on top of the truck. A Holding device secures the body tray or coffin plate lying on it. The slide handle of the lift and transport truck can be removed. An anti-collision buffer is mounted to the front end. TECHNICAL DATA Dimensions lowest position W/D/H:2150 x 750 x 320 mm Dimensions highest position W/D/H:2150 x 750 x 1660 mm Rotation left / right:each side 90° Carrying capacity:max. 250 kg Color:ight grey RAL 7035 (powder coated)
