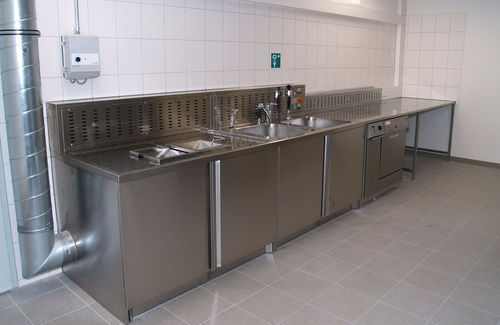

Formalin scavenging system ESS 2500

Special working table with integrated ventilation system. Within the entire work surface the airabsorbed downwards whereby harmful vapour can be absorbed in an optimal way. The working table should be connected to an exhaust-air-system provided by the customer. Complete construction is made of ground stainless steel (material no. 1.4301 - ANSI 304) base frame with three hinged front doors with edged-on strip handle as well as three-dimensional adjustable door panels Within the perforated plates area a removable inlayed grading screen (flap mechanism) to separate liquid substance from solids On the left a seamless welded basin 400 x 400 x 200 mm with standpipe valve (except ESS-1200: basin is not included in standard scope of delivery!) Basin with integrated ventilation system with right or left side option Mixing tap with hand sprinkler Very stable perforated working plates (approx. 10 mm lower than the circumferential edging), perforation D17, T60 Exhaust air capacity with the perforated working surface min. 0.4 m/sec Integrated connecting pieces with flow rate Regulation Integrated sprinkler system below perforated working plates with regulating valve Connecting pieces for exhaust air with right or left side option top part incl. 3-tier plexi glass construction incl. 20 litres Container for waste formalin with sensor Level Container for tissue waste is not included in scope of delivery an eye shower with shower head is mounted to the table Different dimensions available upon request. TECHNICAL DATA Dimensions W/D/H:2500 x 850 x 850 mm Exhaust Air capacity:Min. 1800 m³/h Material:Stainless steel (1.4301 - ANSI 304) Cold/Warm water connection:DN 15
