Laboratory sink TDS-5

autopsyautopsy table1-station

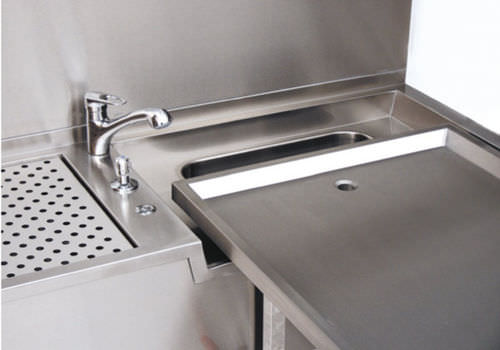

Wall mounted working table compatible with the Mobile Washing and Autopsy Table WT 10/655. In conjunction with the height-adjustable Mobile Washing and Autopsy Table WT 10/655, this working table guarantees optimal working comfort when slicing and preparing. A perforated working top makes sure that all harmful vapours are being vaccumed downwards throughout the entire working area. The wall mounted sink is to be installed to a ventilation system provided by the customer. The Wall Mounted Sink TDS-5 contains the following features: completely made of brushed stainless steel (material no. 1.4301 – ANSI 304) perforated working top, 970 x 650 mm very sturdy, perforated metal Sheets integrated sprinkler system underneath the perforated working top with adjustable valve mixing tap with hand Sprinkler lowered working area with seamlessly welded basin, 500 x 600 x 300 mm backside of the table with build-in Illumination fully plumbed and wired, delivered ready for Installation TECHNICAL DATA Dimensions W/D/H: 2150 x 750 x 400 / 1100 mm Voltage: 230 Volt / 1 Ph / 50 Hz Exhaust air capacity: ca. 500 m³/h Exhaust duct diameter: DN 200
