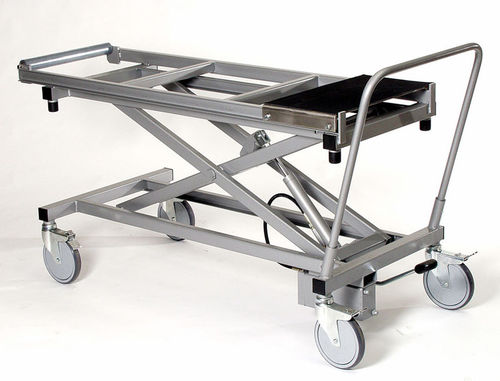

Bed transfer trolley HTW 50/050-SRS

for patient liftscoffintransport

Especially light-weight and yet rugged, torsion-resistant steel frame structure, grey-painted with smoothly running, integrated hydraulic unit for food-actuated vertical adjustment. The lift- and transport truck is equipped with 4 steerable wheels, 2 of them lockable, 1 enabling locking as regards to the direction, diameter 200 mm with special ball bearings, permanently lubricated and maintenance-free, which ensure an absolutely noiseless movement.. The HTW 50/050 has been particularly designed for the transportation inside hospitals and/or for transferring coffins out of the funeral car. The extremely low dead weight allows easy shunting and operation. A special valve ensures even lowering at various loads. The upper construction is equipped with stainless steel profile tracks and a moveable / fixable sliding carriage. On the front side is a carrying roller for easy transferring of coffins in or out of funeral cars. The slight handle can be removed. Model also as stainless steel version available. TECHNICAL DATA Dimensions lowest position W/D/H: 1700 x 710 x 465 mm Dimensions highest position W/D/H: 1700 x 710 x 1265 mm Carrying capacity: max. 250 kg Dead weight: approx. 85 kg Color: grey painted
